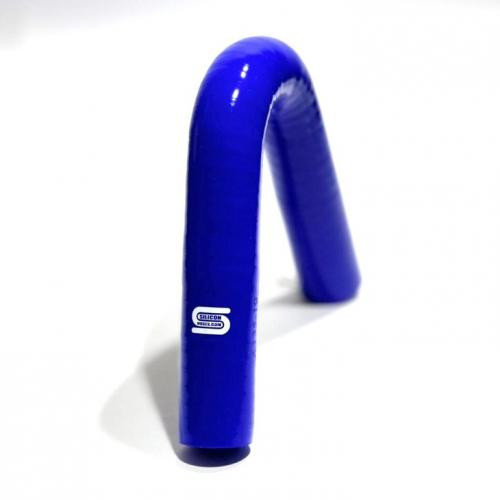

Forge Motorsport - 19mm I/D Silicone 135º Elbow

Forge Motorsport - 19mm I/D Silicone 135º Elbow

Technical Details

• Inside diameter: 19mm (3/4") .
• Leg length: 100mm (4").
• Elbow angle: 135 Degree.
• Wall thickness: 3.5mm (1/8").
• Layers of reinforcing fabric: 3 .
• Reinforcing material: Polyester.
• Liner: Silicone.
• Operating temperature: -40°C to +180°C.

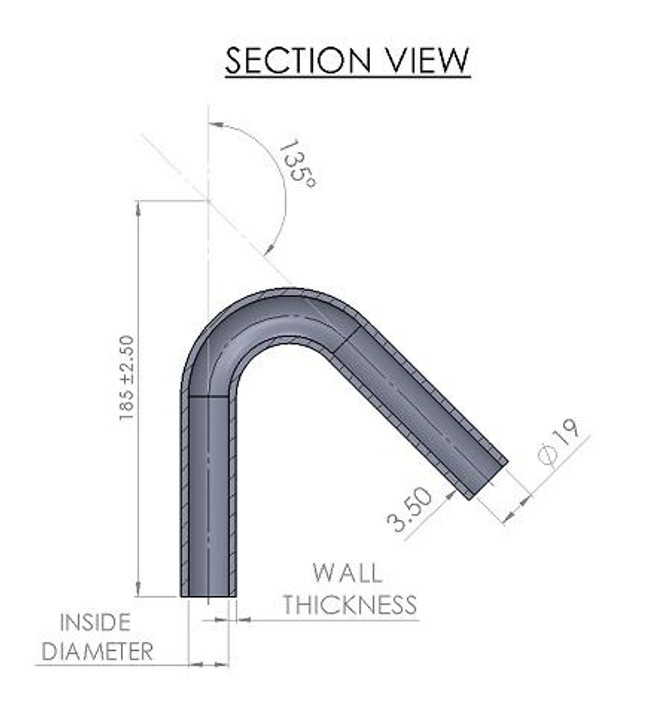

Drawing for reference only.
