034Motorsport SuperDuper Charger 84mm Throttle Body System - Audi Q7 (4M) 3.0TFSI

Süpercharge the performance of your 4M Audi Q7 with the 034Motorsport SüperDüper Charger 84mm Throttle Body System. The purpose of this kit is to improve power beyond the factory throttle body found on the supercharged 3.0 TFSI engine in the 4M Q7s, in a clean and cost-effective package. The 034Motorsport SüperDüper Charger utilizes a VDO 84mm throttle body mated to a cast and machined aluminum throttle body adapter, offering a smooth transition between the larger throttle body to the supercharger inlet. Additionally, the factory accordion throttle body inlet hose is replaced with our upgraded silicone hose to enhance supercharger noise and further reduce restriction in the intake path.

This kit is designed to connect directly to the factory airbox. In testing, we found that the OEM air filter has massive flow capabilities (over 2000CFM, supporting 1000hp easily), resulting in zero flow gains from an aftermarket air filter. For those reasons, we do not provide an aftermarket air filter for this application and recommend our kit be used with the OEM air filter and air box.

034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion/sound deadening hose. Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints.

The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the throttle body.

In testing, we found that the OEM air filter has massive flow capabilities, resulting in zero flow gains from an aftermarket air filter.

FEATURES:

• Cast and Machined A356 Aluminum Throttle Body Adapter
• Upgrades to a VDO 84mm Throttle Body
• Improved Flow Where the Stock Throttle Body Becomes Restrictive
• Significant Increase in Flow for 034Motorsport SuperDuper Throttle Body, Intake Hose, and OE Filter vs. OE Throttle Body, Intake Hose and Filter
• OE: 448 CFM
• 034Motorsport: 620 CFM (39% Increase!)
• OEM BMW V8 Throttle Body for Reliability and Long Lasting Performance
• Smooth Transition from the Large Throttle Body to the Supercharger Inlet
• Throttle Body Adapter and Gasket Can be Port Matched to the Supercharger During Supercharger Porting, Allowing Even More Flow

• Wire-Reinforced Multi-Ply Silicone Hose

-Maintains Smooth Inside Surface for Optimum Flow
-Nylon Breather Tube Connection Nipple

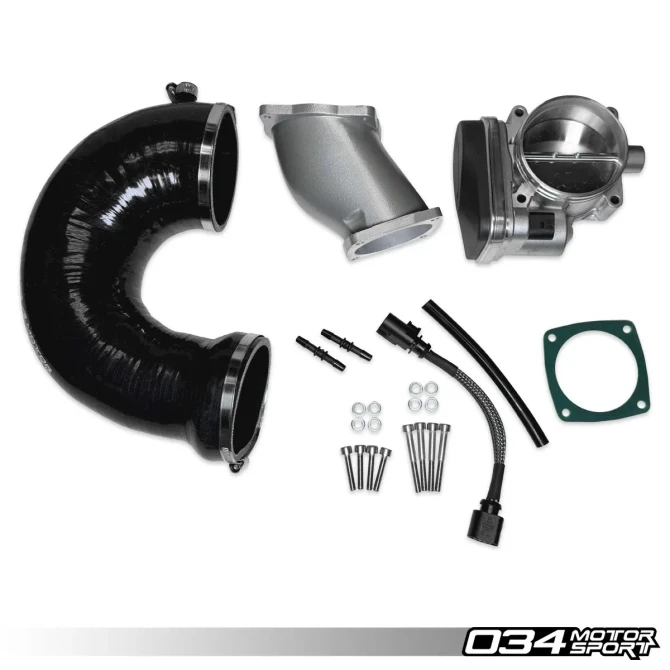

WHAT’S INCLUDED:
84mm VDO Throttle Body
Throttle Body Adapter
Silicone Hose

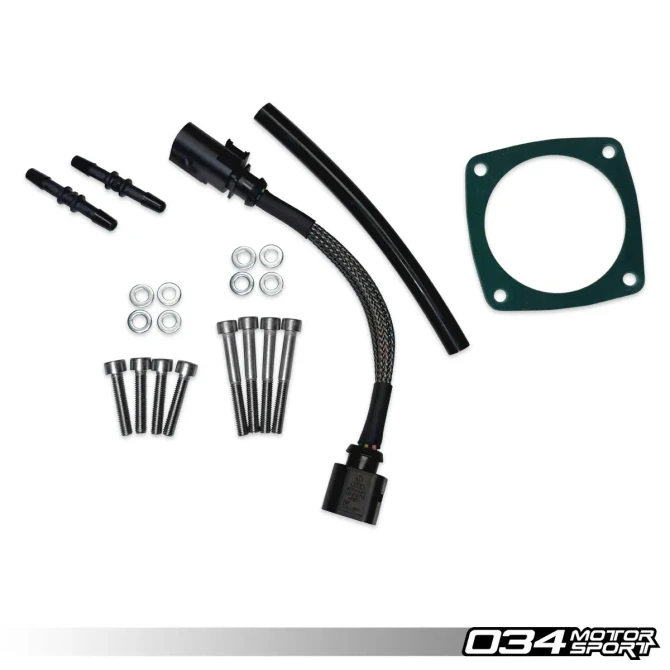

Wiring Harness Adapter
Adapter to Supercharger Gasket
All Necessary Hardware
REPLACES OE PART NUMBERS:
06E 129 616 D
