Pipercams Camshaft - Fast Road (V.A.G.) - 1.9 Diesel PD 'PUMP DUSE'

The world famous VWPDMASTER - known for it's brilliant results! Application: Ultimate Road. Unit Type: Blank.

Note: This camshaft is supplied with a comprehensive fitting guide. It is important this guide is read and adhered to fully. Failure to adhere to the guide can result in damage to your camshaft and / or engine, including snapping of the camshaft. Failure to adhere to the fitting guide may invalidate your warranty.

Note: When installing, be aware that this is a performance camshaft - therefore the cam timing will need to be adjusted to suit. You will also need to reset the torsion values on the ECU, to allow for the changed parameters - failing to do this, may cause you to get issues with contact.  When installing the camshaft, please ensure that the camshaft rotates freely - as some cylinder heads are known to foul on the camshaft and may require a small amount of machining.  Genuine Replacement  Cam Cap Bolts required when replacing the camshaft. O.E Part number is 038103714

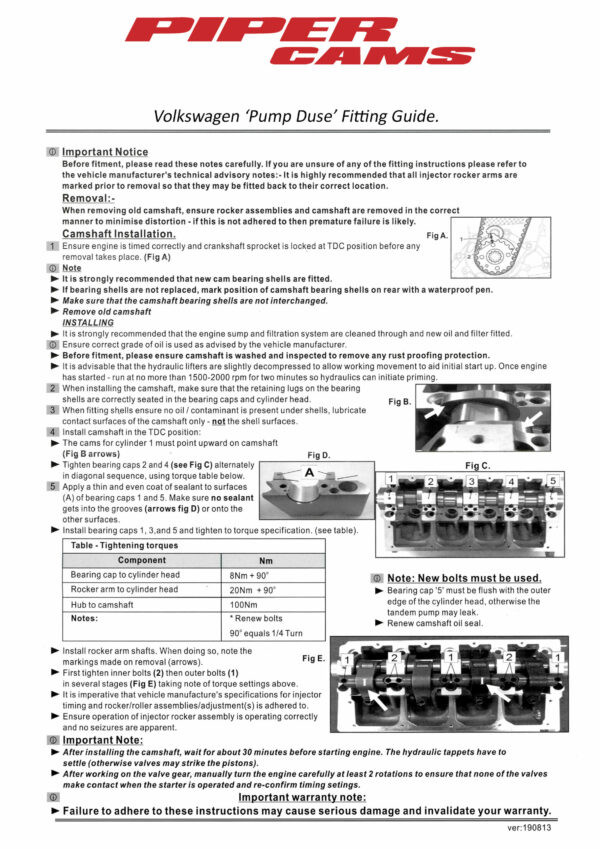

Fitting Guide

Specification

• Application: Fast Road
• Power Band: '-
• Power Increase: '-
• Duration Inlet: 272°
• Duration Exhaust: 272°
• Valve Inlet Lift: .386" 9.80mm
• Valve Exhaust Lift: .386" 9.80mm
• Timing Inlet: 24 - 68
• Timing Exhaust: 68 - 24
• Full Inlet Lift: 112°
• Full Exhaust Lift: 112°
• TDC Inlet Lift: .031" 0.78mm
• TDC Exhaust Lift: .031" 0.78mm
• Valve Inlet Clearance: HYDRAULIC
• Valve Exhaust Clearance: HYDRAULIC
• Manufacturer: V.A.G.
• Product Type: Camshaft
